Product Description
We can produce and supply various specifications silicon steel coil, galvanized steel coil, carbon steel coil, galvalume steel coil, etc.
Silicon steel coil refers to a silicon alloy steel coil with a silicon content of 1.0-4.5% and a carbon content of less than 0.08%, also known as electrical steel. Silicon steel coil has the characteristics of high magnetic permeability, low coercive force, and large resistivity, so hysteresis loss and eddy current loss are small. It is mainly used as magnetic material in motors, transformers, electrical appliances and electrical instruments.
Silicon steel can be divided into two categories: oriented silicon steel and non-oriented silicon steel.
According to the manufacturing process and application, electrical steel can be divided into three categories: hot-rolled silicon steel, cold-rolled electrical steel and special-purpose silicon steel.
1. Hot-rolled silicon steel belongs to non-oriented silicon steel, which can be further subdivided into hot-rolled low-silicon steel (motor steel) and hot-rolled high-silicon steel (transformer steel). Among them, the silicon content of hot-rolled low-silicon steel is between 1.0% and 2.5%, and it is mainly used for household motors and micro-motors; the silicon content of hot-rolled high-silicon steel is between 3.0% and 4.5%, and it is mainly used for transformers.
2. Cold-rolled electrical steel can be divided into cold-rolled oriented electrical steel and cold-rolled non-oriented electrical steel. Cold-rolled oriented silicon steel is divided into ordinary oriented silicon steel and high magnetic induction oriented silicon steel, both of which are used in large, medium and small transformers; cold-rolled non-oriented electrical steel is divided into low-carbon electrical steel (silicon content less than or equal to 0.5%) and silicon steel (silicon content in 0.5%-3.5%). Low-carbon electrical steel is used in household motors, micro-motors, small transformers and ballasts, while silicon steel is used in large and medium-sized motors, generators and transformers. Judging from the above uses, cold-rolled oriented electrical steel is similar to hot-rolled high-silicon steel, both of which are used for transformers, while cold-rolled non-oriented electrical steel is similar to hot-rolled low-silicon steel, both of which are used for motors.
3. There are four types of special-purpose silicon steel: cold-rolled oriented silicon steel strip, cold-rolled non-oriented silicon steel strip, cold-rolled non-oriented silicon steel for magnetic switches, and cold-rolled high-silicon steel. The purpose of cold-rolled oriented silicon steel strip is pulse transformer, magnetic amplifier, high-frequency transformer and electric welding machine; the purpose of cold-rolled non-oriented silicon steel strip is high-frequency motor and generator; the purpose of cold-rolled non-oriented silicon steel for magnetic switch is Relays and magnetic switches; cold-rolled high-silicon steel is used for high-frequency motors, transformers and magnetic shielding.
SEND INQUIRY OR EMAIL ME
Standards and Classifications
| Product Name | Electrical Steel, Lamination Steel, Silicon Electrical Steel, Silicon Steel, Relay Steel, Transformer Steel |
| Category | Cold Rolled Grain Oriented Silicon Electrical Steel Coils (CRGO), Non-oriented silicon steel |
| Standard | AiSi, ASTM, bs, DIN, GB, JIS |
| Type | Oriented Silicon Steel, Non-oriented silicon steel |
| Grade | Grain oriented steel |
| 27QG100, 27QG110, 27Q120, 27Q130, 27Q140, 30QG110, 30QG120, 30QG130, 30Q130, 30Q140, 30Q150, 30QG125, 35QG135, 35Q135, 35Q145, 35Q155, 35Q165 | |
| Non-oriented steel | |
| 35W230, 35W250, 35W270, 35W300, 35W330, 35W360, 35W400, 35W440, 50W230, 50W250, 50W270, 50W290, 50W310, 50W330, 50W350, 50W400, 50W470, 50W540, 50W600, 50W700, 50W800, 50W1000, 50W1300, 65W600, 65W700, 65W800, 65W1000, 65W1300, 65W1600 | |
| M350-50A, M400-50A, M470-50A, M530-50A, M600-50A, M700-50A, M800-50A, M940-50A, M310-65A, M350-65A, M400-65A, M470-65A, M530-65A, M700-65A, M800-65A, M1000-65A, M600-100A, M700-100A, M800-100A, M1000-100A, M1300-100A |

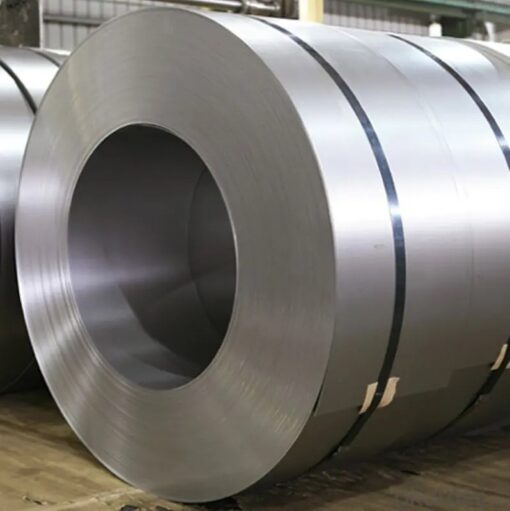

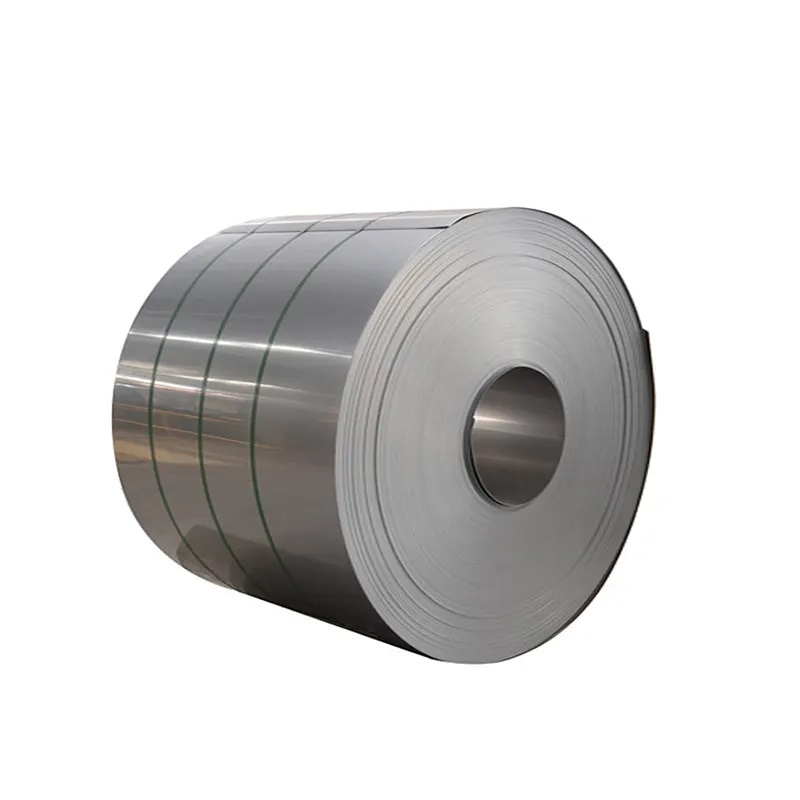

Product Display

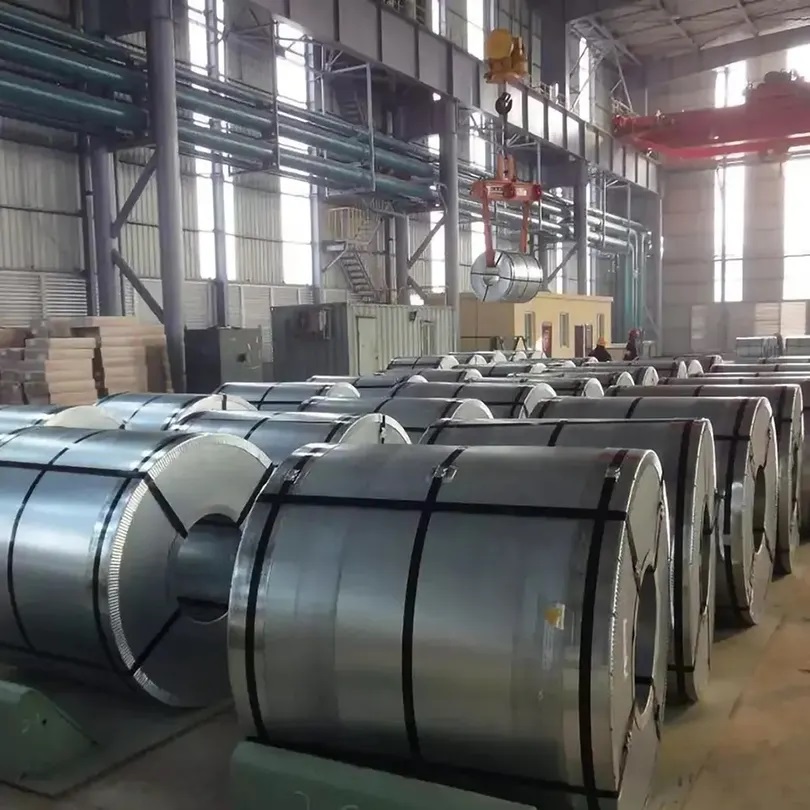

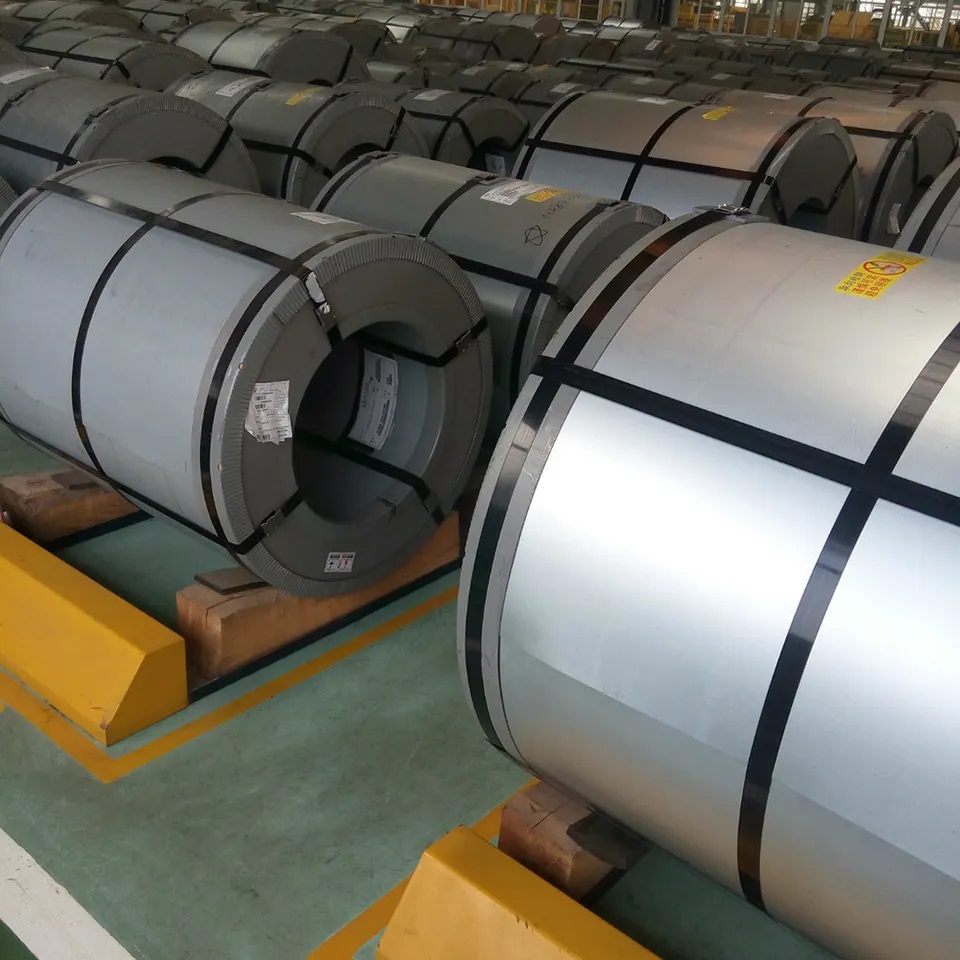

We have a large stock of steel coils, such as carbon steel coil, alloy steel coil, hot rolled steel coils, cold rolled steel sheet in coil, etc. Welcome to visit our factory at any time.
SEND INQUIRY OR EMAIL ME
We can supply various types of Silicon Steel Coils to meet your various needs.
SEND INQUIRY OR EMAIL ME
|
Type
|
SPECIFICATION
|
Thickness
|
|
Ordinary Type
|
B35A210 B35A230 B35A250 B35A270 B35A300 B35A360 B35A440 B35A550
|
0.35 mm
|
|
B50A230 B50A250 B50A270 B50A290 B50A310 B50A350 B50A400 B50A470
|
0.50 mm
|
|
|
B50A540 B50A600 B50A700 B50A800 B50A1000 B50A1300
|
||
|
B65A600 B65A700 B65A800 B65A1000 B65A1300 B65A1600
|
0.65 mm
|
|
|
Stress-relief annealing Type
|
B35AR300
|
0.35 mm
|
|
B50AR300 B50AR350 B50AR500 B50AR600
|
0.50 mm
|
|
|
High Magnetic Induction Type
|
B35AH230 B35AH250 B35AH300
|
0.35 mm
|
|
B50AH300 B50AH350 B50AH470 B50AH600 B50AH800 B50AH1000
|
0.50 mm
|
|
|
Oriented Silicon Steel
|
||
|
Ordinary Type
|
B23G110 B23G120
|
0.23 mm
|
|
B27G120 B27G130
|
0.27 mm
|
|
|
B30G120 B30G130 B30G140
|
0.30 mm
|
|
|
B35G135 B35G145 B35G155
|
0.35 mm
|
|
|
High Magnetic Induction Type
|
B23P075 B23P080 B23P090 B23P095 B23P100
|
0.23 mm
|
|
B27P095 B27P100 B27P110
|
0.27 mm
|
|
|
B30P100 B30P105 B30P110 B30P120
|
0.30 mm
|
|
|
B35P115 B35P125 B35P135
|
0.35 mm
|
|
|
Mechanical Property
|
||||
|
Grade
|
Yeild Strength
(N/mm2) |
Ultra-Tension Strength(N/mm2)
|
Ductility
(%) |
Hardness
(HV1 |
|
M35W230
|
430
|
560
|
20.0
|
225
|
|
M35W250
|
415
|
550
|
20.5
|
220
|
|
M35W270
|
400
|
515
|
20.5
|
215
|
|
M35W300
|
360
|
480
|
21.5
|
195
|
|
M35W360
|
350
|
480
|
23.5
|
190
|
|
M35W440
|
275
|
420
|
27.5
|
165
|
|
M35W550
|
265
|
415
|
33.5
|
160
|
|
M50W250
|
430
|
560
|
19.0
|
230
|
|
M50W270
|
410
|
550
|
21.5
|
225
|
|
M50W290
|
395
|
545
|
22.5
|
220
|
|
M50W310
|
385
|
510
|
24.5
|
210
|
|
M50W350
|
350
|
475
|
26.5
|
190
|
|
M50W400
|
320
|
460
|
36.0
|
170
|
|
M50W470
|
295
|
425
|
35.0
|
160
|
|
M50W600
|
280
|
410
|
37.0
|
140
|
|
M50W800
|
285
|
405
|
38.5
|
135
|
|
M50W1300(D)
|
250
|
360
|
40.0
|
115
|
|
Insulating Coating
|
||
|
Coating types
|
M11
|
M21
|
|
Component
|
Chromium containing , semi organic coating
|
Chromium free, semi organic coating
|
|
Coating thickness(μm)
|
0.7~1.5
|
0.8~5.0
|
|
Interlayer resistance
(Ω•mm2 /slice) |
≥100
|
≥100
|
|
Adhesive property
|
Class A or class B
|
Class A or class B
|
|
Punching property
|
Excellent
|
Excellent
|
|
Antirust property
|
Excellent
|
Excellent
|
|
Heat resisting property
|
Resistant annealing at 750 C, N2 protection, for 2h
|
Annealing resistance in general
|
Exhibition Of Cooperation
SEND INQUIRY OR EMAIL ME

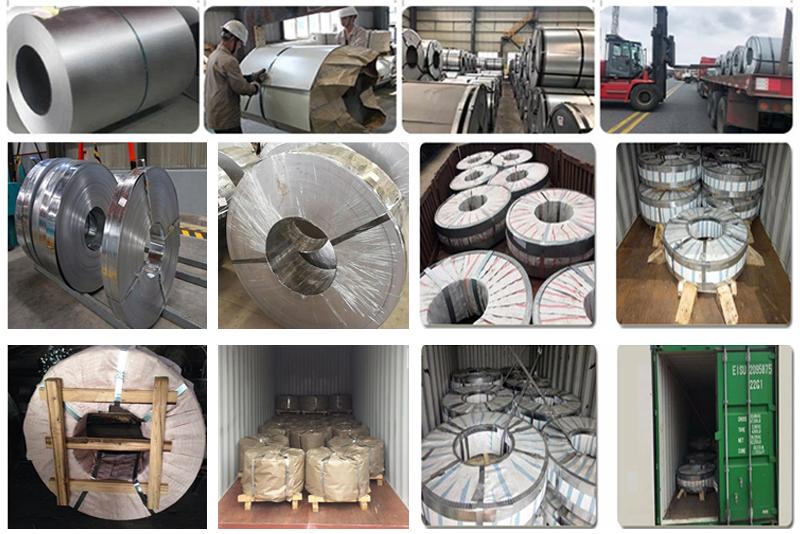

Packing & Delivery
Shipping By Sea
1. Standard packaging
2. Packaging according to customer requirements
SEND INQUIRY OR EMAIL ME
FAQ
Q: Can I get samples before order ?
A: Yes, of course. Usually our samples are free,we can produce by your samples or technical drawings.
Q: Can I go to your factory to visit?
A: Of course, we welcome customers from all over the world to visit our factory.
Q: What product information do I need to provide?
A: You need to provide the grade, width, thickness, coating and the number of tons you need to purchase.
Q: Does the product have quality inspection before loading?
A: Of course, all our products are strictly tested for quality before packaging, and unqualified products will be destroyed.we accept third party inspection.
Q: How do we trust your company?
A: We specialise in steel business for years, headquarter locates in Liaocheng, Shandong province, you are welcome to investigate in any ways, by all means, we have CE and ISO9001 certificate, quality can be guaranteed.
