Product Description
We can produce and supply various specifications prepainted steel coil, color coated steel coil, galvanized steel coil, galvalume steel coil, etc.

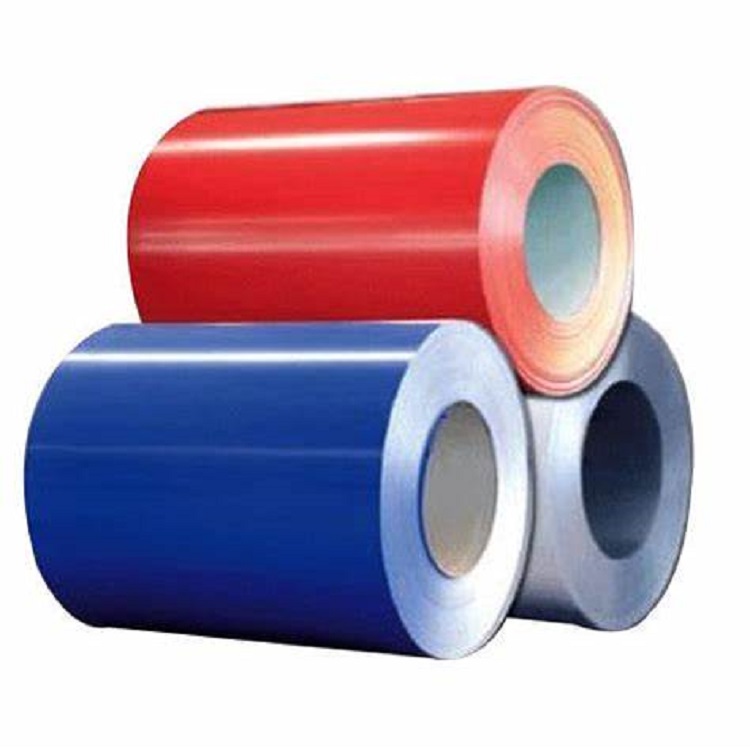

Prepainted steel coils, also called color-coated steel coils, are based on hot-dip galvanized steel coils, galvalume steel coils, and electro-galvanized steel coils. After surface pretreatment (chemical degreasing and chemical conversion treatment), one or several layers of organic coatings are applied on the surface, and then baked and cured. It is named after the colored steel coils coated with various colors of organic coatings, referred to as color-coated coils.
Color-coated rolls are lightweight, beautiful, and have good anti-corrosion properties, and can be processed directly. The colors are generally gray, sea blue, and brick red. They are mainly used in advertising, construction, home appliances, electrical appliances, furniture, and transportation.
The coating used for color-coated coils should select appropriate resins according to different use environments, such as polyester silicon-modified polyester, polyvinyl chloride plastisol, polyvinylidene chloride, etc. Users can choose according to the purpose.
SEND INQUIRY OR EMAIL ME
Standards and Classifications
| Product Name | Prepainted Steel Coil,Color Coated Steel Coil,Printed Pattern Steel Coil,PPGI,PPGL |
| Standard | EN10147, EN10142, DIN 17162, JIS G3302, ASTM A653 |
| Type | Coil/Sheet/Plate/Strip |
| Material | CGCC, SGCC, SGCH, G350, G450, G550, DX51D, DX52D, DX53D, TDC51DZM, TDC52D, TS350GD, TS550GD, DX51D+Z, Soft / Full hard, TDC51D+Z, TDC52D+Z, SPCC, SPGC |
| Thickness | 0.12mm-1.2mm or 0.8mm/0.6mm/0.5mm/0.3mm/0.2mm |
| Width | 600mm-1500mm or 914mm/1000mm/1200mm/1219mm/1220mm |
| Surface Color | RAL/Printed/Matte/Wrinkled/Embossed/Nano |
| Painting Coating | Top: 10 to 35 um (5 um + 12-20 um) Back: 7 +/- 2 um |
| Coating Types | PE/PVDF/HDP/SMP |
| Coil Weight | 3 Tons -8 Tons |
| Coil ID | 508mm/610mm |
Product Display

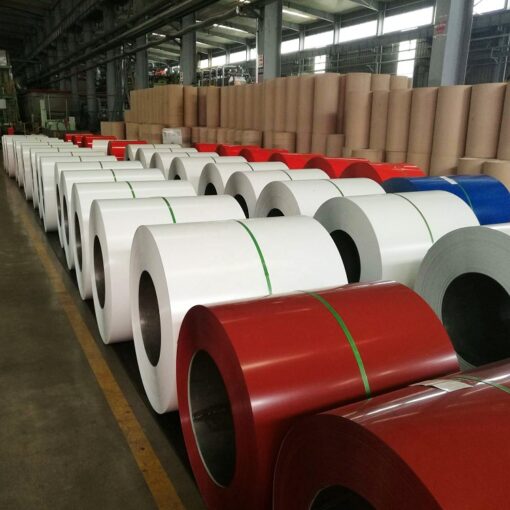

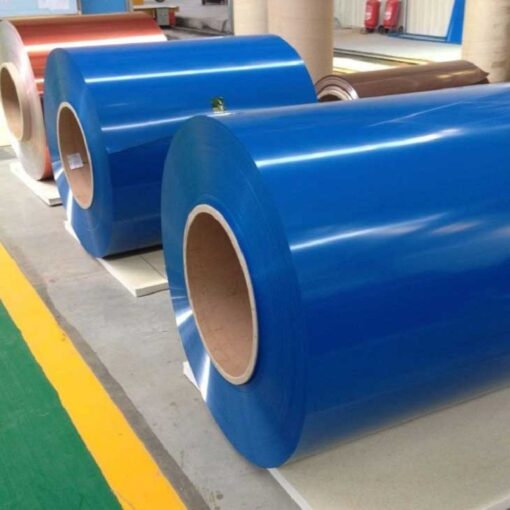

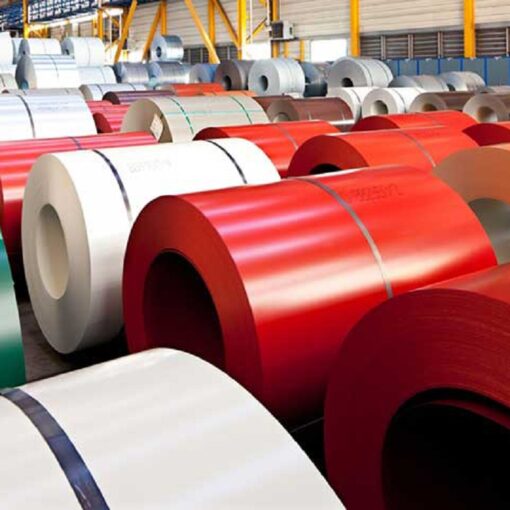

We have a large stock of steel coils, such as prepainted coil, color coated coils, GI coil, GL coils, etc. Welcome to visit our factory at any time.
SEND INQUIRY OR EMAIL ME
We can supply various types of ppgi and ppgl to meet your various needs.
SEND INQUIRY OR EMAIL ME
| NAME | PPGI | GALVANIZED | GALVALUME/ALUZINC |
| CERTIFICATE | ISO9001:2008 | ||
| STANDARD | EN10142 JIS G3302 GB/T-12754-2006 |
ASTM A653 JIS G3302 SGCC/SGCH GB/T2518 European Standard |
ASTM A792 JIS G3321 JIS G3317 |
| GRADE | CGCC CGCH CGCD1-CGCD3 CGC340-CGC570 GRADE |
SS GRADE33-80 SGCC SGCH SGCD1-SGCD3 SGC340-SGC570 SGCC DX51D |
GRADE33-80 SGLCC SGLCD SGLCDD SGLC400-SGLC570 SZACC SZACH SZAC340R |
| MODEL NO | 0.16MM-1.5MM*1250MM OR UNDER | (0.12-1.5)*1250MM OR UNDER | 0.16MM-1.5MM*1250MM OR UNDER |
| TYPE | Steel coil Steel sheets/plates Corrugated steel sheets/plates |
Steel coil Steel sheets/plates Corrugated steel sheets/plates |
Steel coil Steel sheets/plates Corrugated steel sheets/plates |
| TECHNIQUE | Hot rolled-cold rolled -galvalume /galvanized -PPGI/PPGL |
Hot rolled-cold rolled- galvanized | Hot rolled-cold rolled-galvalume /Aluzinc |
| SURFACE | Mini/regular/big/zero spangle, | Mini/regular/big/zero spangle, | |
| TREATMENT | Chromate treatment /chromate-free treatment /untreated unoile/oiled, TENSION LEVELLERT SKIN PASS anti-fingerprint/un-anti-fingerprint, Coating,color |
Chromate treatment /chromate-free treatment /untreated unoile/oiled, TENSION LEVELLERT SKIN PASS anti-fingerprint/un-anti-fingerprint, Coating |
|
| APPLICATION | Structural use ,roofing, commercial use, household appliance, industry, family | ||
| SPECIAL APPLICATION | Wear resistant steel, high- strength – steel plate | ||
| Prepainted galvanized steel coil(PPGI) | ||||||
| Standard | Grade | Zinc coating | Width | Thickness | Length | Capacity/year |
| JIS G3312 | CGCC | Z40-Z275g | 600- 1250 | 0.16-1.5 | Coil | 200,000Ton |
| EN10346 | DX51D+AZ/DX53D+AZ/S220GD-550GD | Z40-Z275g | 600- 1250 | 0.16-1.5 | Coil | 200,000Ton |
| ASTM A792 | CS-B/SS255-550 | Z40-Z275g | 600- 1250 | 0.16-1.5 | Coil | 200,000Ton |
| Coil ID:508mm/610mm, Coil Weight: 3-8Ton, Top coating:12-25μm, back coating:5-15μm; RAL international color With/ Without PE film Smooth/Matt fini | ||||||
| Prepainted galvalume steel coil(PPGL) | ||||||
| Standard | Grade | Zinc coating | Width | Thickness | Length | Capacity/year |
| JIS G3312 | CGLCC | Z40-Z275g | 600- 1250 | 0.23-1.5 | Coil | 200,000Ton |
| EN10346 | DX51D+AZ/DX53D+AZ/S220G-550GD | Z40-Z275g | 600- 1250 | 0.23-1.5 | Coil | 200,000Ton |
| ASTM A755 | CS-B/SS255-550 | Z40-Z275g | 600- 1250 | 0.23-1.5 | Coil | 200,000Ton |
| Coil ID:508mm/610mm, Coil Weight: 3-8Ton, Top coating:12-25μm, back coating:5-15μm; RAL international color With/ Without PE film Smooth/Matt fini | ||||||

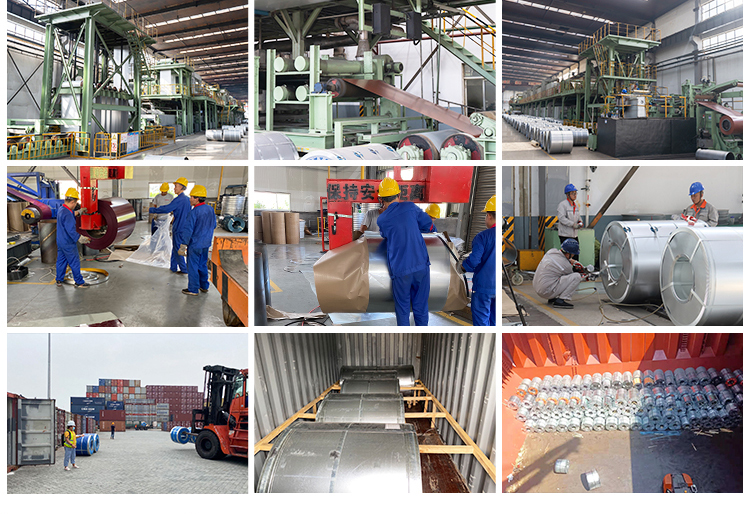

Exhibition Of Cooperation
SEND INQUIRY OR EMAIL ME

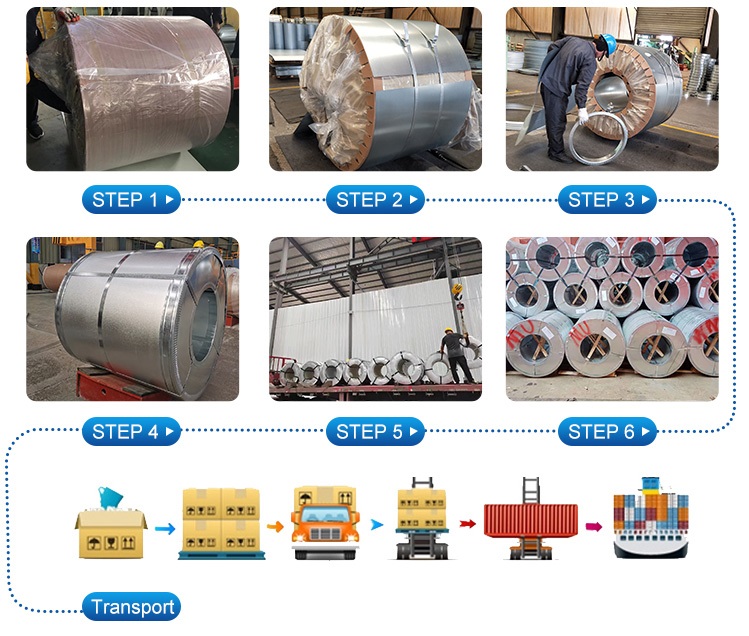

Packing & Delivery
Shipping By Sea
1. Standard packaging
2. Packaging according to customer requirements
SEND INQUIRY OR EMAIL ME
FAQ
Q: Can I get samples before order ?
A: Yes, of course. Usually our samples are free,we can produce by your samples or technical drawings.
Q: Can I go to your factory to visit?
A: Of course, we welcome customers from all over the world to visit our factory.
Q: What product information do I need to provide?
A: You need to provide the grade, width, thickness, coating and the number of tons you need to purchase.
Q: Does the product have quality inspection before loading?
A: Of course, all our products are strictly tested for quality before packaging, and unqualified products will be destroyed.we accept third party inspection.
Q: How do we trust your company?
A: We specialise in steel business for years, headquarter locates in Liaocheng, Shandong province, you are welcome to investigate in any ways, by all means, we have CE and ISO9001 certificate, quality can be guaranteed.
