We can supply hollow sections, seamless steel pipe and welded steel tubes in various materials and specifications.
Rectangular pipe is a name for square pipe and rectangular pipe, that is, steel pipes with equal and unequal side lengths. It is made of strip steel after process treatment.
Rectangular tubes are divided according to the production process: hot-rolled seamless tubes, cold-drawn seamless tubes, extruded seamless tubes, and welded tubes.
Among them, the welded square tube is divided into
1. According to the process – arc welded square tube, resistance welded square tube (high frequency, low frequency), gas welded square tube, furnace welded square tube
2. According to the weld seam – straight seam welded square pipe, spiral welded square pipe.
Square tubes are divided by material: plain carbon steel square tubes, low alloy square tubes.
1. Common carbon steel is divided into: Q195, Q215, Q235, SS400, 20# steel, 45# steel, etc.
2. Low alloy steel is divided into: Q345, 16Mn, Q390, ST52-3, etc.
Square tubes are divided according to production standards: national standard square tubes, Japanese standard square tubes, imperial square tubes, American standard square tubes, European standard square tubes, and non-standard square tubes.
Square tubes are classified according to cross-sectional shape:
1. Simple section square tube: square square tube, rectangular square tube.
2. Square tubes with complex sections: flower-shaped square tubes, open-shaped square tubes, corrugated square tubes, and special-shaped square tubes.
Square tubes are divided according to surface treatment: hot-dip galvanized square tubes, electro-galvanized square tubes, oil-coated square tubes, and pickled square tubes.
Square tubes are classified by use: square tubes for decoration, square tubes for machine tools, square tubes for machinery industry, square tubes for chemical industry, square tubes for steel structures, square tubes for shipbuilding, square tubes for automobiles, square tubes for steel beams and columns , Special purpose square tube.
Rectangular tubes are classified according to wall thickness: ultra-thick-walled rectangular tubes, thick-walled rectangular tubes and thin-walled rectangular tubes.
Executive standard
GB/T6728-2002, GB/T6725-2002, GBT3094-2000, JG 178-2005, ASTM A500 JIS G3466, EN10210 or technical agreement.
GB/T3094-2000 (national standard) cold-pressed special-shaped rectangular tube
GB/T6728-2002 (National Standard) Cold-Formed Hollow Sections for Structures
ASTM A500 (American Standard) Structural carbon steel cold-formed circular section and profiled section welded rectangular tube and seamless rectangular tube
EN10219-1-2006 (European standard) Non-alloy and fine-grained cold-formed welded hollow structural profiles
JIS G 3466 (Japanese standard) Angular rectangular pipes for general construction
SEND INQUIRY OR EMAIL ME
Standards and Classifications
| COMMODITY NAME | SQUARE AND RECTANGULAR HOLLOW SECTION PIPE/ TUBE |
| Grade | 10#-45#, 16mn, Q195-Q345, 16Mn, Q195, Q215, Q235, Q345, SS400, ST32, ST52, ASTM A500, ASTM A36 etc.
Q195 = S195 / A53 Grade A |
| STANDARD | ASTM, DIN, GB, JIS, ASTM A513-2007, DIN EN 10208-1-1998, DIN EN 10216-1-2004, GB/T 3094-2000, JIS G3465-2006, JIS G3466 |
| PIPE SURFACE | Galvanized, black painted, or anti-rust oiled |
| PIPE ENDS | PLAIN ENDS |
| Section Shape | Square |
| SurfaceTreatment | oil,paint |
| Outer Diameter | 20*20-600*600 |
| Thickness | 1.0 – 35 mm |
Product Display
1. Rectangular pipes can be made as straight seam square pipes and seamless square pipes, and special specifications can be customized.
2. Executive standard: GB/T6728-2002, ASTM, JIS or technical agreement.
3. Square tube material: 235B, Q345(B, C), 16Mn, 20#, 45#, 20MN2.
SEND INQUIRY OR EMAIL ME
We can supply various types of carbon steel tubes/pipes to meet your various needs.
SEND INQUIRY OR EMAIL ME
| REGULAR SIZE | ||
| SIZE (OUTER DIAMETER) | WALL THICKNESS | LENGTH |
| 20×20 / 25×25 | 1.2MM –2.75MM | 6M IN STOCK (OR CUSTOMIZED) |
| 30×30 / 20×40 / 30×40 / 25×40 | 1.2MM — 3.5MM | 6M IN STOCK (OR CUSTOMIZED) |
| 40×40 / 50x5030x50 / 25×50 / 30×60 / 40×60 | 1.2MM — 4.75 MM | 6M IN STOCK (OR CUSTOMIZED) |
| 60×60 / 50×70 / 40×80 / 40×50 | 1.2 MM — 5.75 MM | 6M IN STOCK (OR CUSTOMIZED) |
| 70×70 / 60×80 / 50×80 / 100×40 / 50×90 | 1.5MM — 5.75 MM | 6M IN STOCK (OR CUSTOMIZED) |
| 75×75 / 80×80 / 90×90 60×100 / 50×100 / 120×60 / 100×80 / 60×90 |
1.5MM — 7.75 MM | 6M IN STOCK (OR CUSTOMIZED) |
| 100×100 / 120×80 | 1.8MM — 7.75 MM | 6M IN STOCK (OR CUSTOMIZED) |
| 120×120 / 130×130 180×80 / 160×80 / 100×150 / 140×80 / 140×60 |
2.5MM — 10.0 MM | 6M IN STOCK (OR CUSTOMIZED) |
| 140×140 / 150×150 / 100×180 / 200×100 | 2.5MM — 10.0 MM | 6M IN STOCK (OR CUSTOMIZED) |
| 160×160 / 180×180 / 200×150 | 3.5MM — 11.0 MM | 6M IN STOCK (OR CUSTOMIZED) |
| 200×200 / 250×150 / 100×250 | 3.5MM — 11.0 MM | 6M IN STOCK (OR CUSTOMIZED) |
| 250×250 / 250×200 / 300×150 / 300×200 | 4.5MM — 15.0 MM | 6M IN STOCK (OR CUSTOMIZED) |
| 300×300 / 350×200 / 350×250 /300×150 | 4.5MM — 15.0 MM | 6M IN STOCK (OR CUSTOMIZED) |
| 350×350 350×300 / 450×250 / 400×300 / 500×200 |
4.5MM — 15.75 MM | 6M IN STOCK (OR CUSTOMIZED) |
| 400×400 / 280×280 | 4.5MM — 15.75 MM | 6M IN STOCK (OR CUSTOMIZED) |
| 450×300 / 450×200 / 400×350 / 400×250 / 500×250 / 500×300 | ||
Exhibition Of Cooperation
SEND INQUIRY OR EMAIL ME

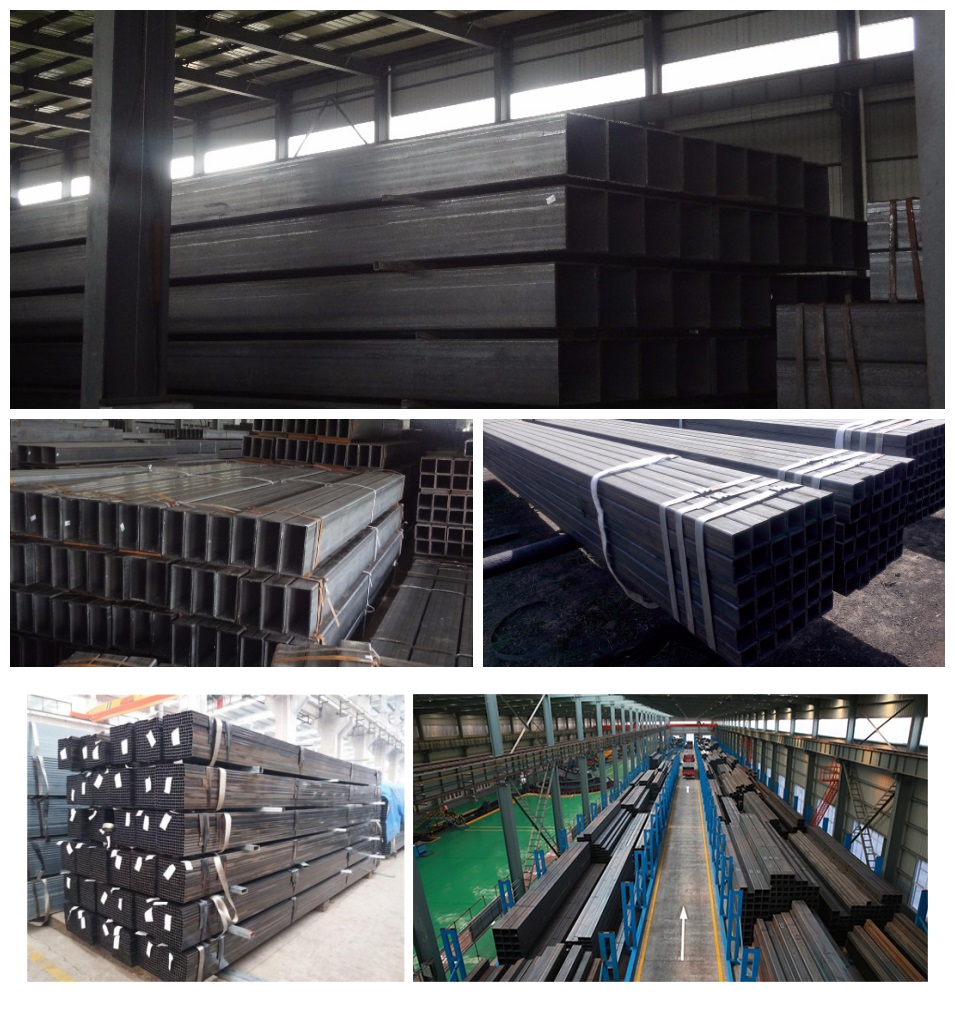

Packing & Delivery
Shipping By Sea
1. Standard packaging
2. Packaging according to customer requirements
SEND INQUIRY OR EMAIL ME
FAQ
Q: Can I get samples before order ?
A: Yes, of course. Usually our samples are free,we can produce by your samples or technical drawings.
Q: Can I go to your factory to visit?
A: Of course, we welcome customers from all over the world to visit our factory.
Q: What product information do I need to provide?
A: You need to provide the grade, width, thickness, coating and the number of tons you need to purchase.
Q: Does the product have quality inspection before loading?
A: Of course, all our products are strictly tested for quality before packaging, and unqualified products will be destroyed.we accept third party inspection.
Q: How do we trust your company?
A: We specialise in steel business for years, headquarter locates in Liaocheng, Shandong province, you are welcome to investigate in any ways, by all means, we have CE and ISO9001 certificate, quality can be guaranteed.
