Boiler tubes are open at both ends and have a hollow section. Boiler tubes are a type of seamless tubes. The manufacturing method is the same as that of the seamless pipe, but there are strict requirements on the steel type used in the manufacture of the steel pipe. According to the use temperature, it is divided into two types: general boiler tube and high pressure boiler tube.
Steel Grade
(1) The steel grades of high-quality carbon structural steel are 20G, 20MnG, and 25MnG.
(2) Alloy structural steel Steel grades 15MoG, 20MoG, 12CrMoG, 15CrMoG, 12Cr2MoG, 12CrMoVG, 12Cr3MoVSiTiB, etc.
(3) 1Cr18Ni9 and 1Cr18Ni11Nb boiler tubes commonly used in rusty and heat-resistant steels must be subjected to hydrostatic tests one by one, flaring and flattening tests in addition to ensuring chemical composition and mechanical properties. Steel pipes are delivered in a heat-treated state.
In addition, there are certain requirements for the microstructure, grain size and decarburization layer of the finished steel pipe.
SEND INQUIRY OR EMAIL ME
Standards and Classifications
| Product name | Material | Standard | Size(mm) | Application |
| Low temperature tube | 16MnDG 10MnDG 09DG 09Mn2VDG 06Ni3MoDG ASTM A333 |
GB/T18984- 2003 ASTM A333 |
OD:8-1240* WT:1-200 |
Apply to – 45 ℃ ~ 195 ℃ low temperature pressure vessel and low temperature heat exchanger pipe |
| High-pressure boiler tube | 20G ASTMA106B ASTMA210A ST45.8-III |
GB5310-1995 ASTM SA106 ASTM SA210 DIN17175-79 |
OD:8-1240* WT:1-200 |
Suitable for manufacturing high pressure boiler tube, header, steam pipe, etc |
| Petroleum cracking tube | 10 20 |
GB9948-2006 | OD: 8-630* WT:1-60 |
Used in oil refinery furnace tube, heat exchanger tube |
| Low medium pressure boiler tube | 10# 20# 16Mn,Q345 |
GB3087-2008 | OD:8-1240* WT:1-200 |
Suitable for manufacturing various structure of low and medium pressure boiler and locomotive boiler |
| General structure of the tube | 10#,20#,45#,27SiMn ASTM A53A,B 16Mn,Q345 |
GB/T8162- 2008 GB/T17396- 1998 ASTM A53 |
OD:8-1240* WT:1-200 |
Apply to the general structure, engineering support, mechanical processing, etc |
| Oil casing | J55,K55,N80,L80 C90,C95,P110 |
API SPEC 5CT ISO11960 |
OD:60-508* WT:4.24-16.13 |
Used for extraction of oil or gas in oil Wells casing, used in oil and gas well sidewall |

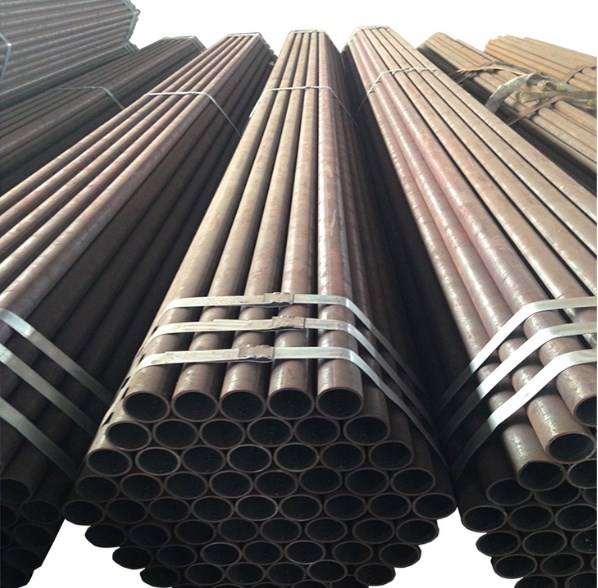

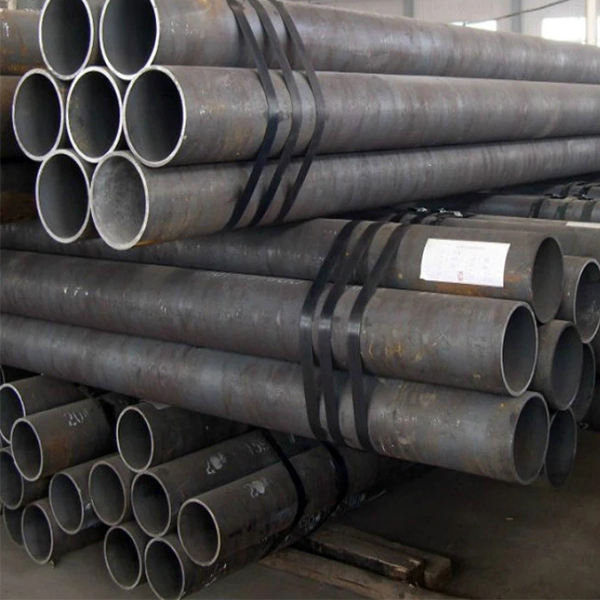

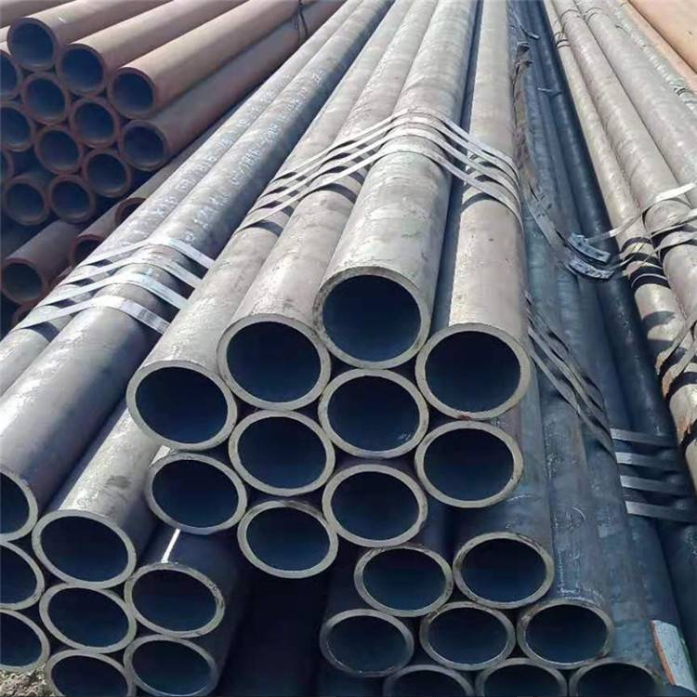

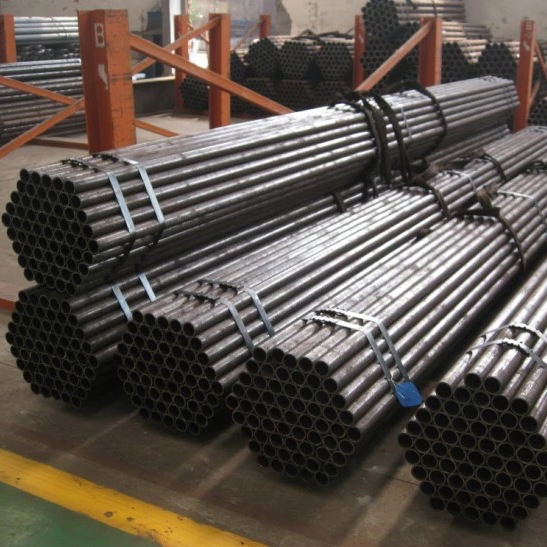

Product Display
We have a large stock of steel tubes, such as spiral welded steel tube and longitudinal welded steel pipes, etc. Welcome to visit our factory at any time.
SEND INQUIRY OR EMAIL ME
We can supply various types of carbon steel tubes/pipes to meet your various needs.
SEND INQUIRY OR EMAIL ME
| Outer Diameter | 6-2500mm (1/2-48),etc |
| Wall Thickness | 1-150mm (SCH10-SCHXXS),etc |
| Length | 1-12m, etc |
| The special sizes can be customized as per the client’s requirements. | |
| Shape | rectangular,square,hexagonal,round,oval,etc |
| Surface Finish | black painted,PE painted,galvanized,color coated,anodized,anti-rust varnished,anti-rust oiled,etc |
| Material | GB 10, 20, 35, 45, Q295, Q345, 16MnDG, 10MnDG, 09DG, 09Mn2VDG, 06Ni3MoDG, 20G, 20MnG, 25MnG, 15MoG, 20MoG, 12CrMoG, 15CrMoG, 12Cr2MoG, 12Cr1MoVG, 12Cr2MoWVTiB, 12Cr3MoVSiTiB, 1Cr9Mo1VNb, 16Mn, 15MnV, 10MoWVNb, 40Mn2, 45Mn2, 27SiMn, 40MnB, 45MnB, 20Mn2B, 20Cr, 30Cr, 35Cr, 40Cr, 45Cr, 50Cr, 38CrSi, 12CrMo, 15CrMo, 20CrMo, 35CrMo, 42CrMo, 12CrMoV, 12Cr1MoV, 38CrMoAl, 50CrVA, 20CrMn, 20CrMnSi, 30CrMnSi, 20CrMnTi, 30CrMnTi, 12CrNi2, 12CrNi3, 12CrNi4, 40CrNiMoA, 45CrNiMoVA, 1Cr5Mo, 12Cr2Mo, etc |
| DIN EN St37, St37-2, St37-3U, St37-3N., RSt-2, USt37-2, St35, St45, TTSt35N, TTSt35V, 26CrMo4, 11MnNi5-3, 13MnNi6-3, 10Ni14, 12Ni19, X8Ni9, St35.8, St45.8, 19Mn5, 17Mn4, 15Mo3, 13CrMo44, 10CrMo9-10, 14MoV63, X20CrMoV12, 25CrMo4, 13CrMo4-4, 10CrMo9-10, 12CrMo9-10, 12CrMo12-10, 12CrMo19-5, X12CrMo9-1, 20CrMoV13-5, X20CrMoV12-1, etc |
|
| ASTM ASTM A209/A209M (T1,T1A,T1B), ASTM A213 (T2, T5, T5b, T5c, T9, T11, T12, T17, T21, T22, T91, T92,), ASTM A335/A335M (P1, P2, P5, P5b, P5c, P9, P11, P12, P15, P21, P22, P23, P91, P92, P122, P911), ASTM A199 T11, T22, T9, ASTM A200 T5, T9, T11, T22, ASTM A106 A/B/C, ASTM A500 A/B/C/D, ASTM A53 A/B, ASTM A179, ASTM A192, ASTM A178 C, ASTM A210 A1/C, etc |
|
| JIS STBA12/13/20/22/23/24/25/26, STB340/410/510, STS370/410/480, STPG370/410, STBL380/450/690, STPT370/410/480, STPL380/450/690, etc. |
|
Exhibition Of Cooperation
SEND INQUIRY OR EMAIL ME
Packing & Delivery
Shipping By Sea
1. Standard packaging
2. Packaging according to customer requirements
SEND INQUIRY OR EMAIL ME
FAQ
Q: Can I get samples before order ?
A: Yes, of course. Usually our samples are free,we can produce by your samples or technical drawings.
Q: Can I go to your factory to visit?
A: Of course, we welcome customers from all over the world to visit our factory.
Q: What product information do I need to provide?
A: You need to provide the grade, width, thickness, coating and the number of tons you need to purchase.
Q: Does the product have quality inspection before loading?
A: Of course, all our products are strictly tested for quality before packaging, and unqualified products will be destroyed.we accept third party inspection.
Q: How do we trust your company?
A: We specialise in steel business for years, headquarter locates in Liaocheng, Shandong province, you are welcome to investigate in any ways, by all means, we have CE and ISO9001 certificate, quality can be guaranteed.
