We can produce and supply various specifications weather-resistant steel plates, weathering steel plates, corten steel plates, etc.
Weather-resistant steel plate, also known as weathering steel plate, corten steel plate, that is, atmospheric corrosion-resistant steel, is a low-alloy steel plate between ordinary carbon steel plate and stainless steel sheet. Weather-resistant steel is made of ordinary carbon steel with a small amount of copper, nickel and other corrosion-resistant elements Made of high-quality steel, it has the characteristics of high-quality steel, such as toughness, plastic extension, forming, welding and cutting, abrasion, high temperature, and fatigue resistance.
The use of high weather-resistant structural steel is mainly used for bolted, riveted and welded structural parts for vehicles, containers, buildings, towers and other structures because of its better atmospheric corrosion resistance than weather-resistant steel for welded structures. When used as welded structural parts, the thickness of the steel should not be greater than 16mm. The welding performance of weather-resistant steel for welded structures is better than that of high-weather-resistant structural steel, and it is mainly used for welded structural parts for bridges, buildings and other structures.
SEND INQUIRY OR EMAIL ME
Standards and Classifications

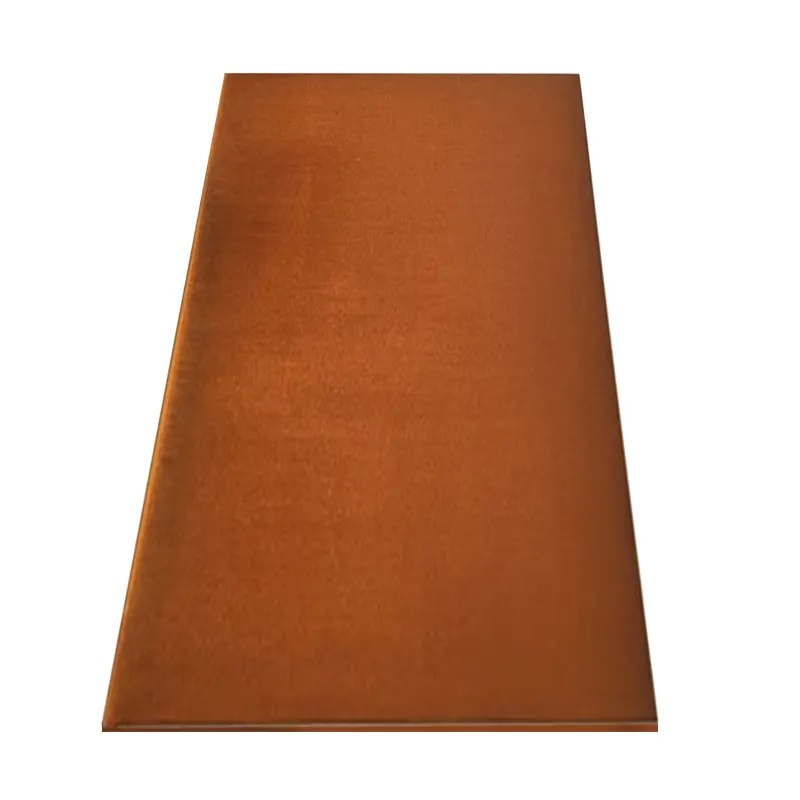

| Products | Corten Steel Sheet / Weathering Steel Plates |
|
Standard Grade |
ASTM: Corten A; Corten B; A588Gr.A/Gr.B/Gr.C/ Gr.K; A242; A606 Type 4; A709 Gr 50W; |
| EN10025: S235J0W; S235J2W; S355J0W; S355J2W; S355K2W; S355J0WP; S355J2WP; S355J2G1W; S355J2G2W; S355K2G1W, S355K2G2W; | |
| JIS G3114: SMA400AW; SMA400BW; SMA400CW; SMA490AW; SMA490BW; SMA490CW; SMA570W; SMA570P; | |
| JIS G3125: SPA-H; SPA-C; | |
| GB/T 4171: Q235NH; Q265GNH; Q310GNH; Q295NH; Q295GNH; Q355NH;Q355GNH; Q415NH; Q460NH; 1500NH; Q550NH; | |
| GB/T 1979: 09CuPCrNi-A; 09CuCrNi-B; 05CuPCrNi; | |
| Q/BQB 340: B460NQR; B490NQR; B480GNQR; B600GNQR; | |
| Thickness | Cold Rolled 0.5-2mm Hot Rolled 2-300mm (2-100mm usually used) |
| Width | 1000-3000mm (1000-2200mm usually used) |
| Length | 1000-12000mm or as your request |
| Surface | Clean, finishing,blasting and painting according to customer requirement |
| Process | Hot-rolled, Controlled rolling, Normalizing, Annealing, Tempering, Quenching, N+T, Q+T, and other delivery states are available as required |
| Certificate | API,ISO,SGS,BV,CE etc |
| Quality | MTC will be provided with goods, third part inspection is acceptable, for example BV,SGS. |
| Package | Standard export seaworthy package,suit for all kinds of transport,or as required. |
| Container Size | 20ft GP:5898mm(Length)x2352mm(Width)x2393mm(High) |
| 40ft GP:12032mm(Length)x2352mm(Width)x2393mm(High) | |
| Trade term | Ex-Work,FOB,CNF,CFR,CIF,etc |
| Application | Widely used in a variety of architectural and engineering structures,such as |
| 1.) metal constructions such as buildings,bridges,ships; | |
| 2.) transmission tower, reaction tower; | |
| 3.) lifting transportation machinery; | |
| 4.) industrial furnace;boilers | |
| 5.) container frame, warehouse goods shelves, etc |
Product Display
We have a large stock of steel coils, such as carbon steel coil, alloy steel coil, hot rolled steel coils, cold rolled steel sheet in coil, etc. Welcome to visit our factory at any time.
SEND INQUIRY OR EMAIL ME
We can supply various types of carbon steel tubes/pipes to meet your various needs.
SEND INQUIRY OR EMAIL ME
| Grade | C | Mn | P | S | Si | Ni | Cr | Cu |
| COR-TEN A | ≤0.12 | 0.20–0.5 | 0.07-0.15 | ≤0.03 | 0.25–0.75 | ≤0.65 | 0.50-1.25 | 0.25–0.55 |
| COR-TEN B | ≤0.16 | 0.8–1.25 | ≤0.03 | ≤0.03 | 0.30–0.50 | ≤0.40 | 0.40-0.65 | 0.25–0.40 |
| Grade | Yield Strength | Tensile Strength | Elogation |
| Mpa | Mpa | (A%) | |
| COR-TEN A | ≥345 | ≥485 | ≥21 |
| COR-TEN B | ≥345 | ≥485 | ≥21 |
| Material | Weathering Steel | ||||||
| Standard | ASTM A588 | ASTM A606 | GB/T4170 | TB/T 1979 | EN10025-5 | JIS G3125 | JIS G3114 |
| Grade | Grade A Grade B Grade C Grade K |
Type 4 | Q235NH Q355NH Q355GH Q460NH |
09CuPNiCr-A | S235J0W S235J2W S355J0W S355J2W S355J0WP S355J2WP |
SPA-H | SMA400 SMA490 SMA570 |
| Tensile Strength | GB | JIS | NSC | SEW 087-81 | EN 10155-93 | ASTM A606M-98 |
| MPa | ||||||
| 340 | WTSt37-2 | |||||
| WTSt37-3 | ||||||
| 360 | S235JOW | |||||
| S235J2W | ||||||
| 400 | 16CuCr | SMA400AW、AP | NAW41 | |||
| (GB 4172-84) | SMA400BW、BP | NAWK41A、B、C | ||||
| SMA400CW、CP | S-ten1 | |||||
| (JISG3114-98) | MARILOY S41A、G41 | |||||
| 410 | 09CuP(GB 4171-84) | |||||
| 420 | 12MnCuCr | |||||
| (GB 4172-84) | ||||||
| 430 | 09CuPCrNi-B | |||||
| (GB 4171-84) | ||||||
| 440 | S-ten1,S-ten2 | |||||
| 460 | ||||||
| 480 | 09CuPCrNi-A | SPA-H(≤6mm) | COR-TEN A、B | T2、T4 | ||
| (GB 4171-84) | (JIS G3125-87) | (T=TYPE,) | ||||
| 490 | 15MnCuCr | SPA-H(>6mm) | NAW50,COR-TENO | WTSt52-3 | ||
| (GB 4171-84) | (JISG3125-87) | COR-TEN 50A、B、C | ||||
| SMA490AW、AP | MARILOY P50、S50 | |||||
| SMA490BW、BP | G50、T50 | |||||
| SMA490CW、CP | (A、B、C) | |||||
| (JISG3114-98) | ||||||
| 510 | S355JOWP、J2WP | |||||
| S355JOW、J2G1W | ||||||
| J2G2W、K2G1W | ||||||
| K2G2W | ||||||
| 550 | 15MnCuCr-QT | COR-TEN C | ||||
| (GB 4172-84) | ||||||
| 570 | SMA570W、P | COR-TEN 60 | ||||
| (JISG3114-98) |
